Description

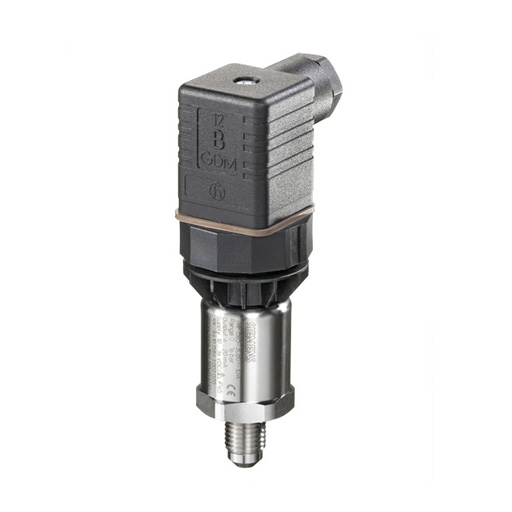

Sitrans P200
Benefits:
- High measuring accuracy
- Rugged stainless steel enclosure
- High overload withstand capability
- For aggressive and non-aggressive media
- For measuring the pressure of liquids, gases and vapors
- Compact design
Technical Spesification:
Input Spesification / Measuring Range
| Bar | Psi | |
| Gauge Pressure | 1…60 | 15…870 |
| Absolute Pressure | 0.6…16 | 10…232 |
Output Spesification
| Current Signal | Voltage Signal | |
| Value | 4…20mA | 0…10 V DC |
| Load | 0.02 A | ≥10 KΩ |
| Current Consumption | – | < 7mA at 10 KΩ |
| Auxillary Power | 7…33 V DC | – |
Electrical Connection
- Connector per EN 175301-803-A Form A with cable inlet M16x1.5 or ½-14 NPT
- 2 or 3-wire (0.5 mm2) cable (∅ ± 5.4 mm)
- Quickon cable quick screw connection
- M12 connector
